PNP-SVF Series | Automatic Jet Filter & Silo Vent Filter

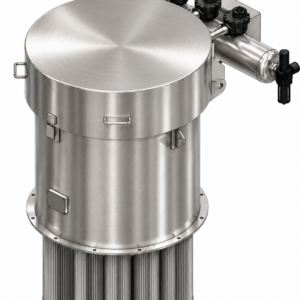

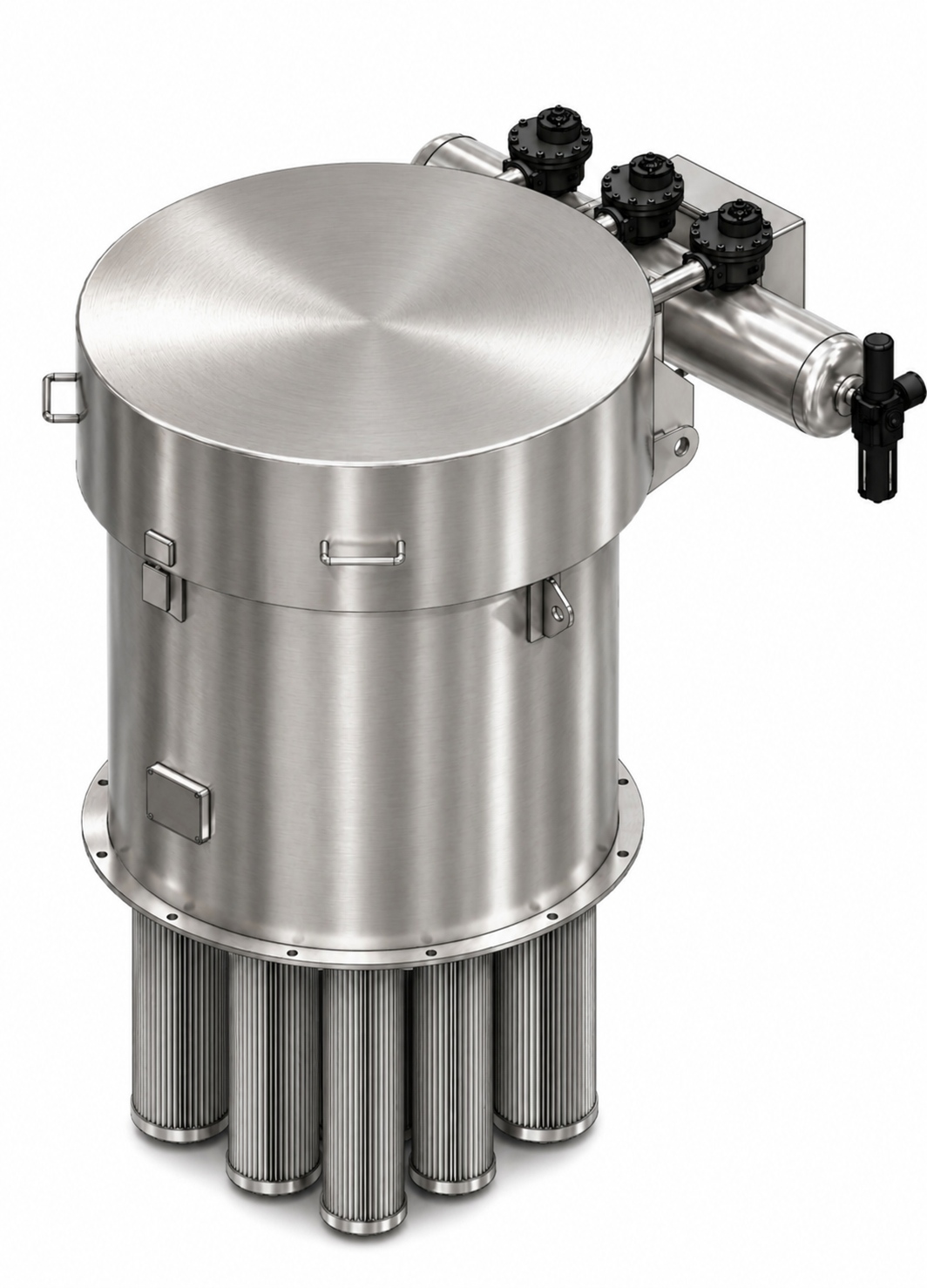

PNP-SVF Series

Automatic Pulse Jet Silo Vent Filter

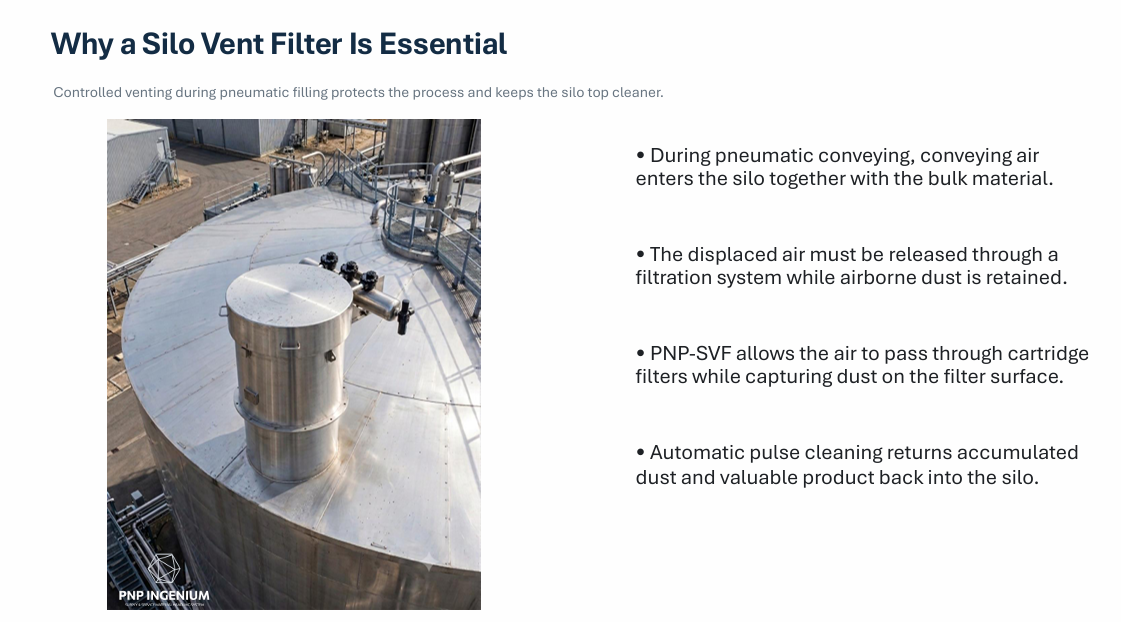

The PNP-SVF Series is a silo-mounted dust filtration system (Silo Vent Filter) designed to filter dust and vent displaced air generated during the filling or conveying of materials into a silo, particularly in Pneumatic Conveying Systems.

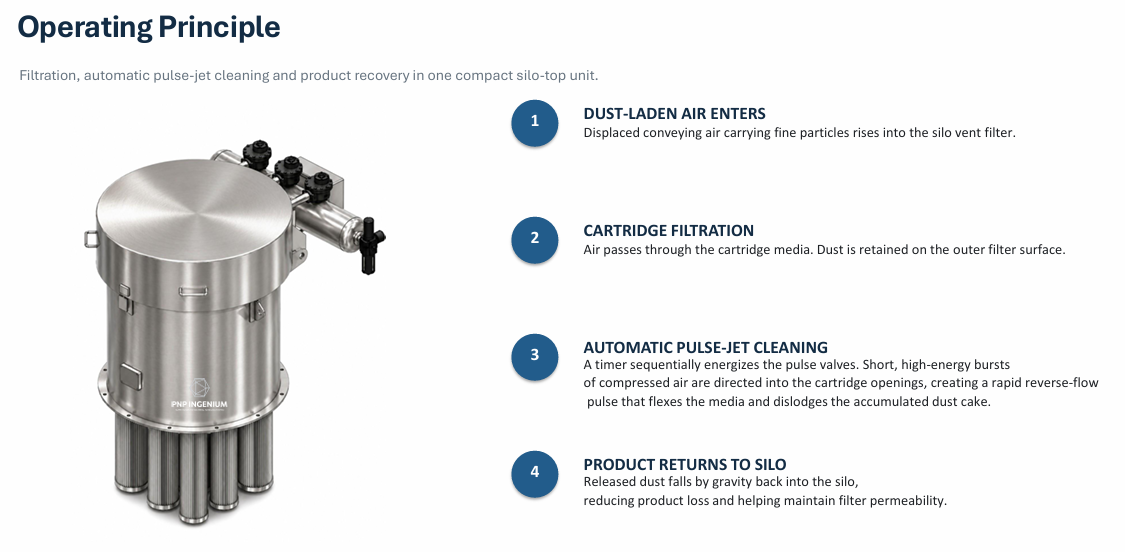

The unit utilizes Cartridge Filters combined with an Automatic Pulse Jet Cleaning System to automatically clean the filter elements. Dust and material accumulated on the filter surface are discharged back into the silo, helping to reduce dust emissions and minimize product loss.

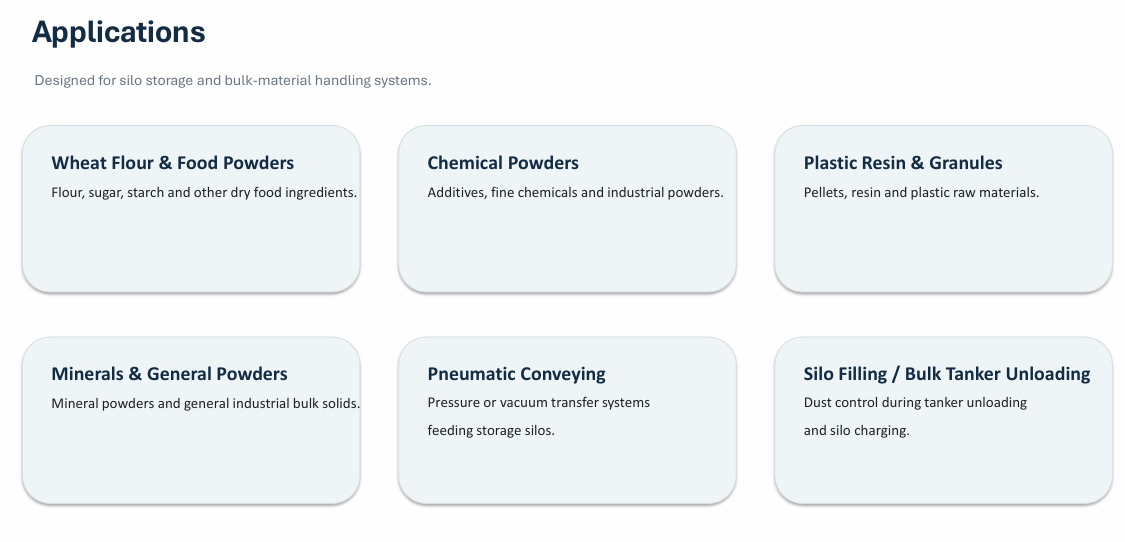

APPLICATION

Suitable for installation on Storage Silos and bulk material storage systems handling powders and granules, including wheat flour, food ingredients, chemical powders, plastic pellets, and other bulk materials filled or transferred into silos by Pneumatic Conveying Systems.

Features & Benefits

• Automatic Pulse Jet Cleaning System for automatic filter cleaning
• Antistatic Polyester Cartridge Filters
• High-efficiency separation of fine dust
• Helps reduce dust emissions during silo filling
• Collected dust is discharged back into the silo, minimizing product loss

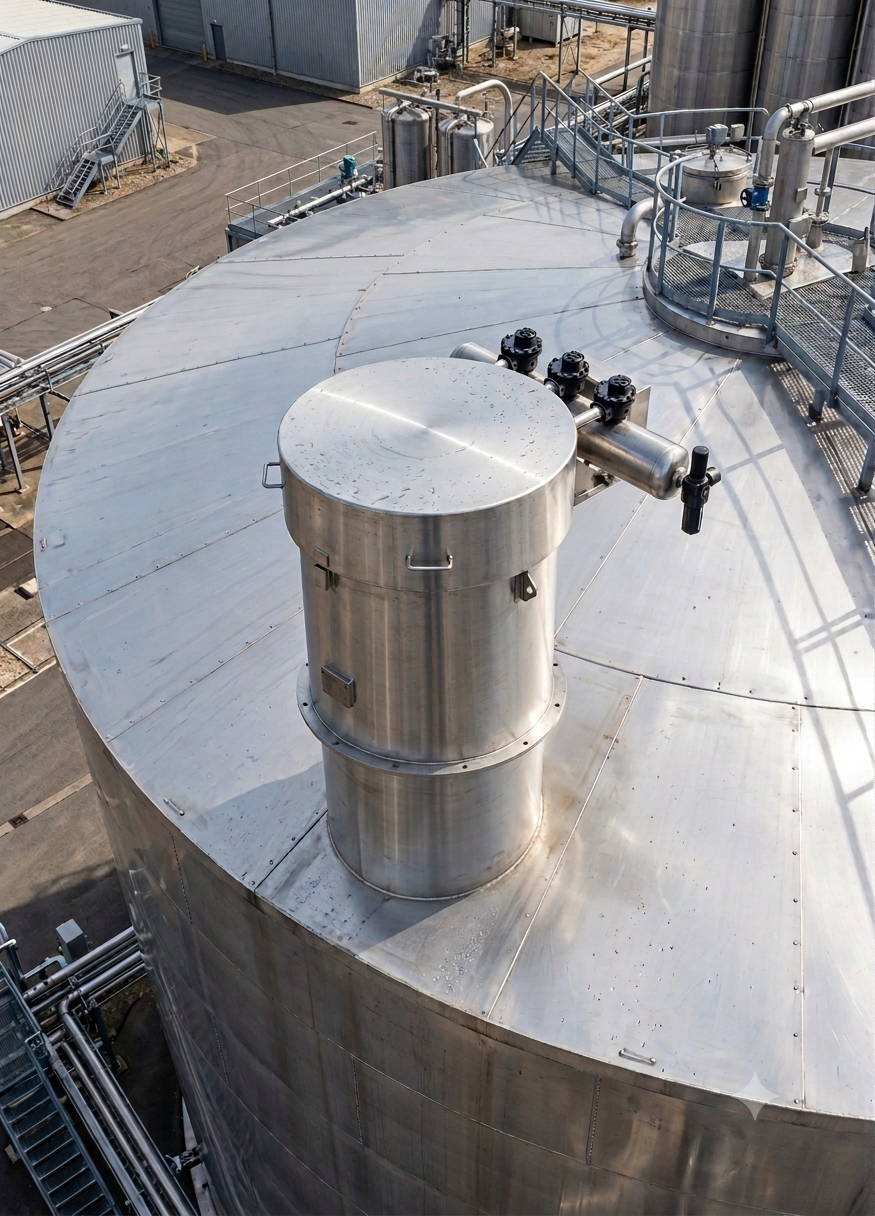

• Compact design for Silo Top Installation

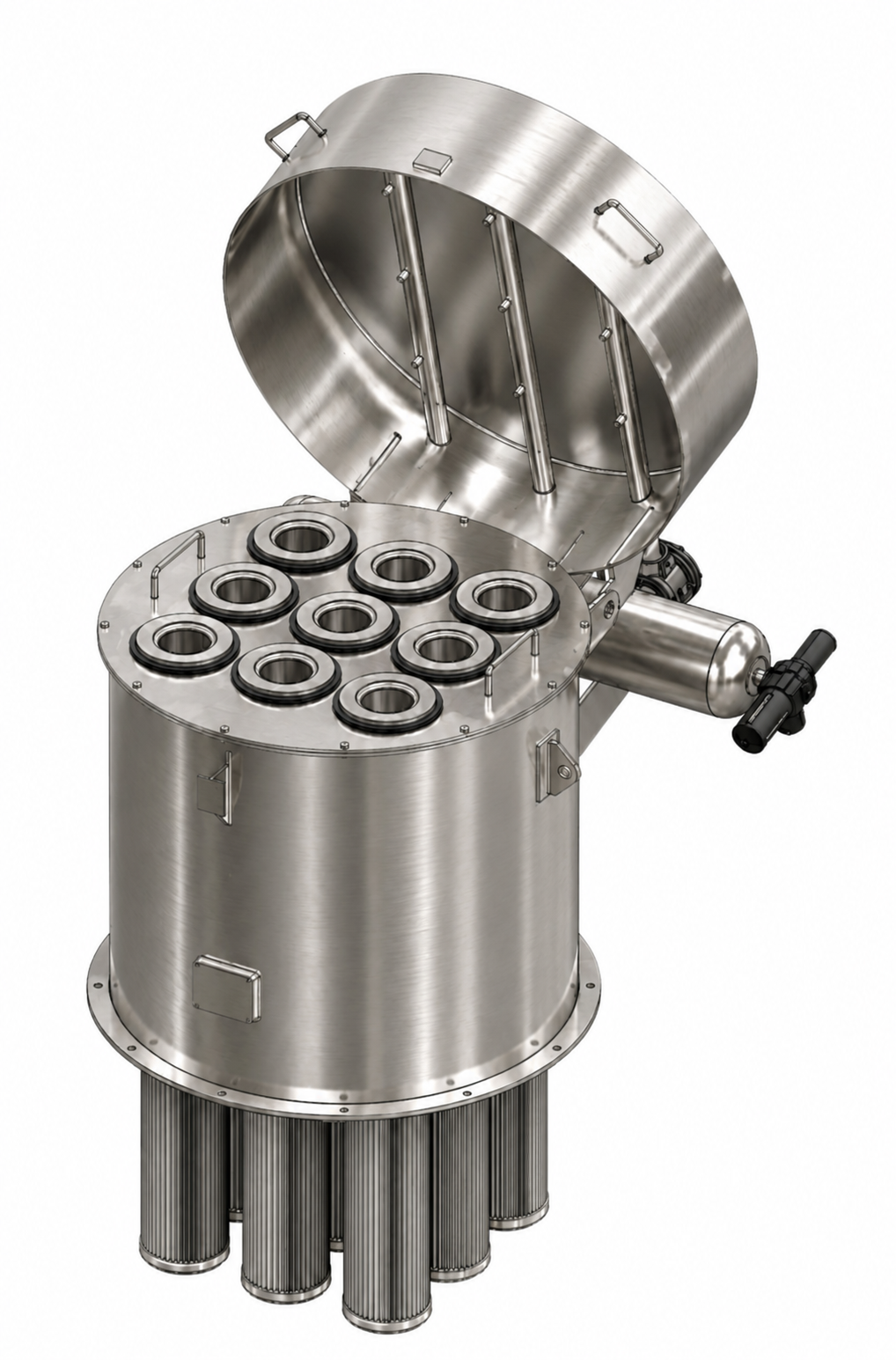

• Top-opening cover provides easy access to the Cartridge Filters for inspection and maintenance
• Suitable for Pneumatic Conveying and Silo Filling applications
• Optional Filter Media available for fine-dust applications
• Optional electrical equipment available in accordance with ATEX Directive 2014/34/EU

Technical Data — PNP-SVF Series
