Conveying, Material Separation and Dust Control for Plastic Granulation Processes

The PNP-CYS360 Series is designed to convey plastic regrind from granulators while separating reusable material from fine dust. The system helps minimize airborne dust, reduce material handling and improve the efficiency of material recovery for reuse.

Common Problems in Plastic Granulation Processes

After plastic materials pass through a granulator, the output generally consists of reusable plastic regrind and fine dust. Without an effective conveying and dust-separation system, manufacturers may encounter:

• Plastic regrind and dust accumulating around machinery
• Reliance on manual material handling
• Fine dust contaminating reusable regrind
• Material loss during transfer
• Production areas that are difficult to clean and maintain
• Discontinuous material flow and limited process control

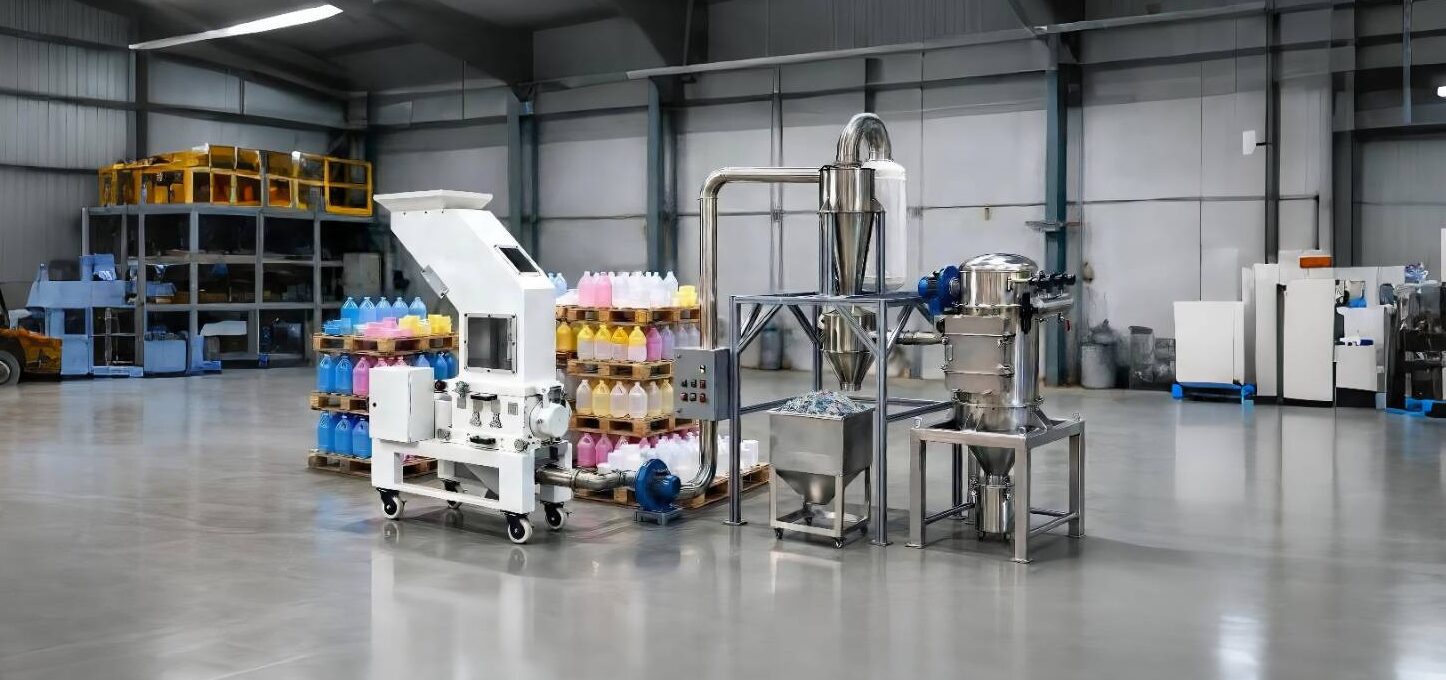

An Integrated Solution from Granulator to Collection Point

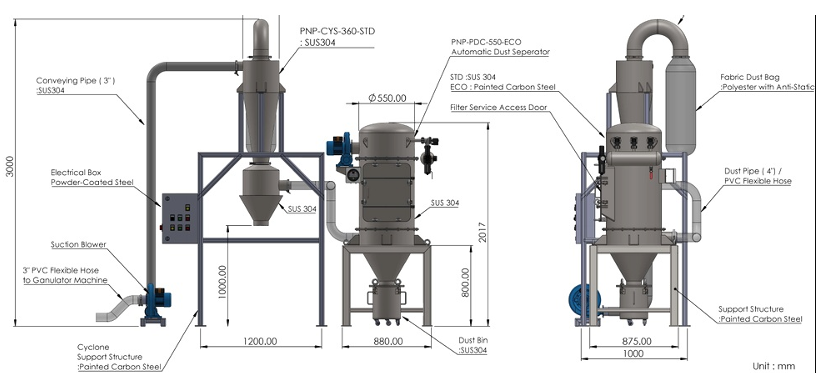

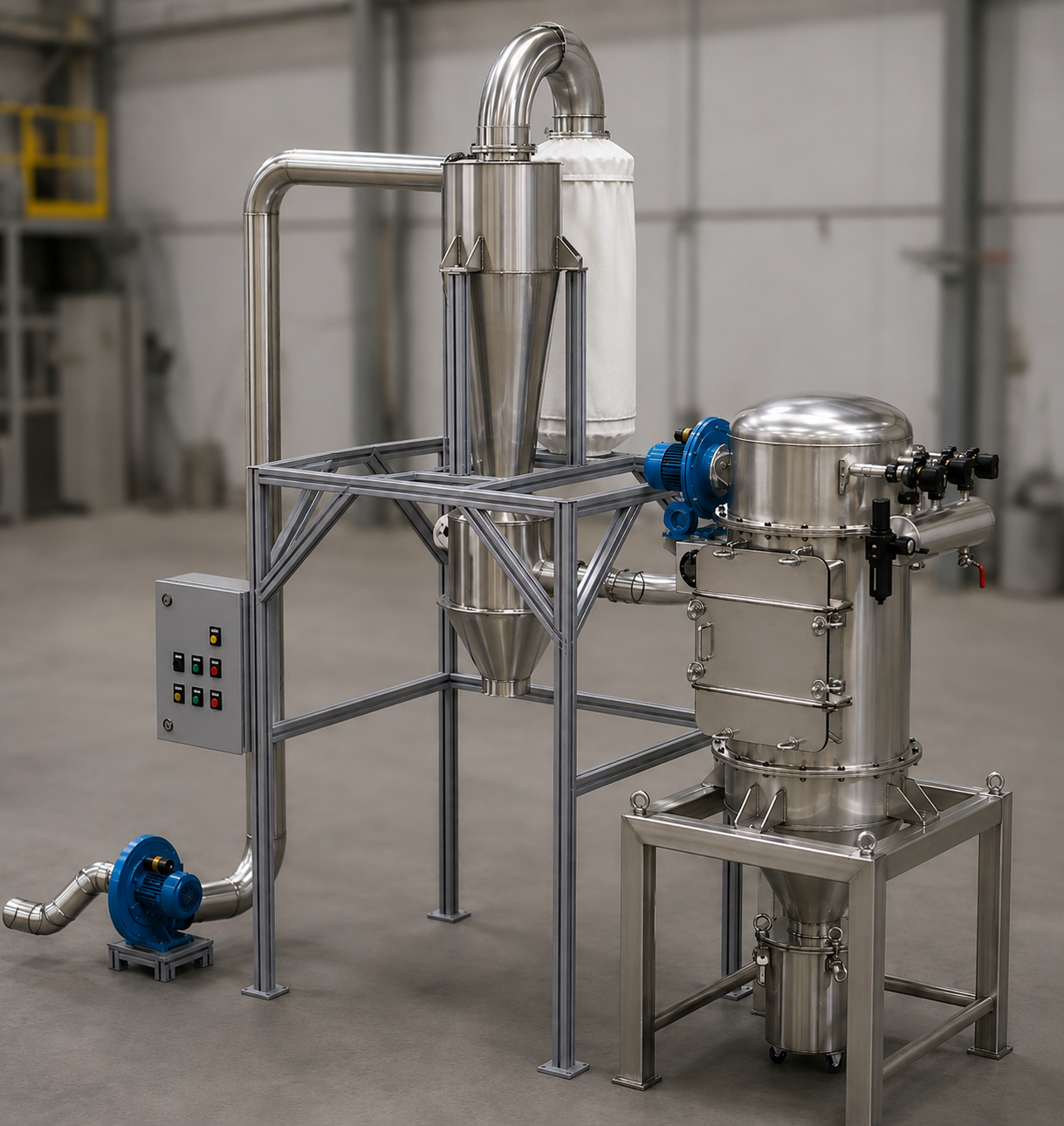

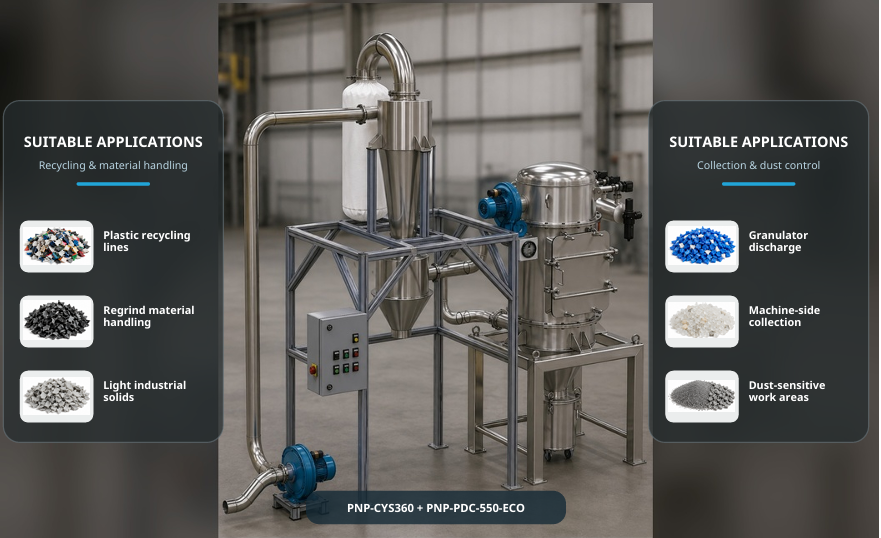

The PNP-CYS360 Series is engineered as an integrated system that handles material from the granulator discharge to the designated collection point.

1. Pneumatic Conveying

Plastic regrind is transferred from the granulator through an enclosed piping system, helping reduce manual handling and material exposure.

2. Cyclone Separation

The PNP-CYS360 Cyclone Separator separates the main reusable material from the conveying air and discharges it into a receiving hopper or collection container.

3. Fine Dust Collection

The PNP-PDC-550-ECO Dust Collector captures fine dust carried over from the cyclone separation stage, helping reduce dust emissions within the production area.

4. Automatic Pulse-Jet Cleaning

The automatic pulse-jet system periodically cleans the filter elements, helping minimize filter blockage and reduce routine maintenance requirements.

5. Application-Specific Engineering

The blower capacity, pipe diameter, pipe routing and system components are selected according to:

• Material type and particle characteristics
• Required conveying capacity
• Conveying distance
• Vertical lift
• Number of pipe bends
• Actual installation space and site conditions

Customer Benefits

• Systematic conveying of plastic regrind
• Separation of reusable material from fine dust
• Reduced airborne dust in the working area
• Reduced reliance on manual material handling
• Lower material loss during transfer
• Easier system cleaning and maintenance
• Flexible integration with existing machinery
• Local engineering, spare-parts and after-sales support in Thailand

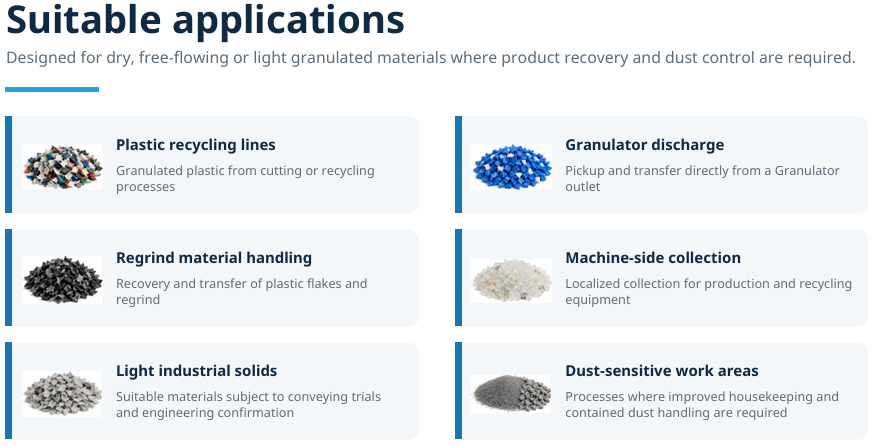

Suitable Applications

The system is suitable for:

• Plastic recycling lines
• Regrind material handling
• Granulator discharge systems
• Machine-side material collection
• Light industrial bulk solids
• Dust-sensitive production areas

Typical Materials

Typical materials that can be handled include:

• Plastic regrind
• Rigid plastic flakes
• ABS regrind
• Plastic chips
• Granulated plastic

Actual conveying performance depends on the material size, shape, bulk density, required capacity and piping configuration. Each system is therefore evaluated and engineered according to the customer’s specific application.

Customized for Your Process. Built in Thailand. Supported Locally.
