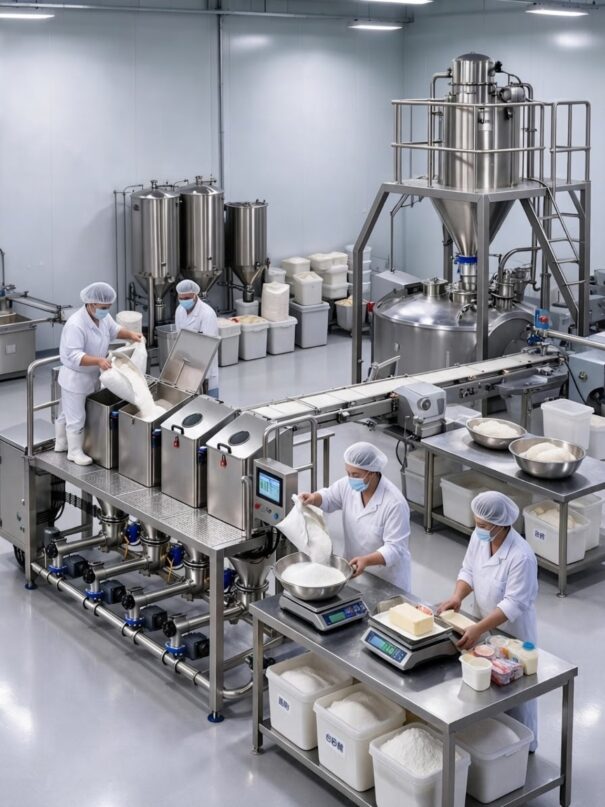

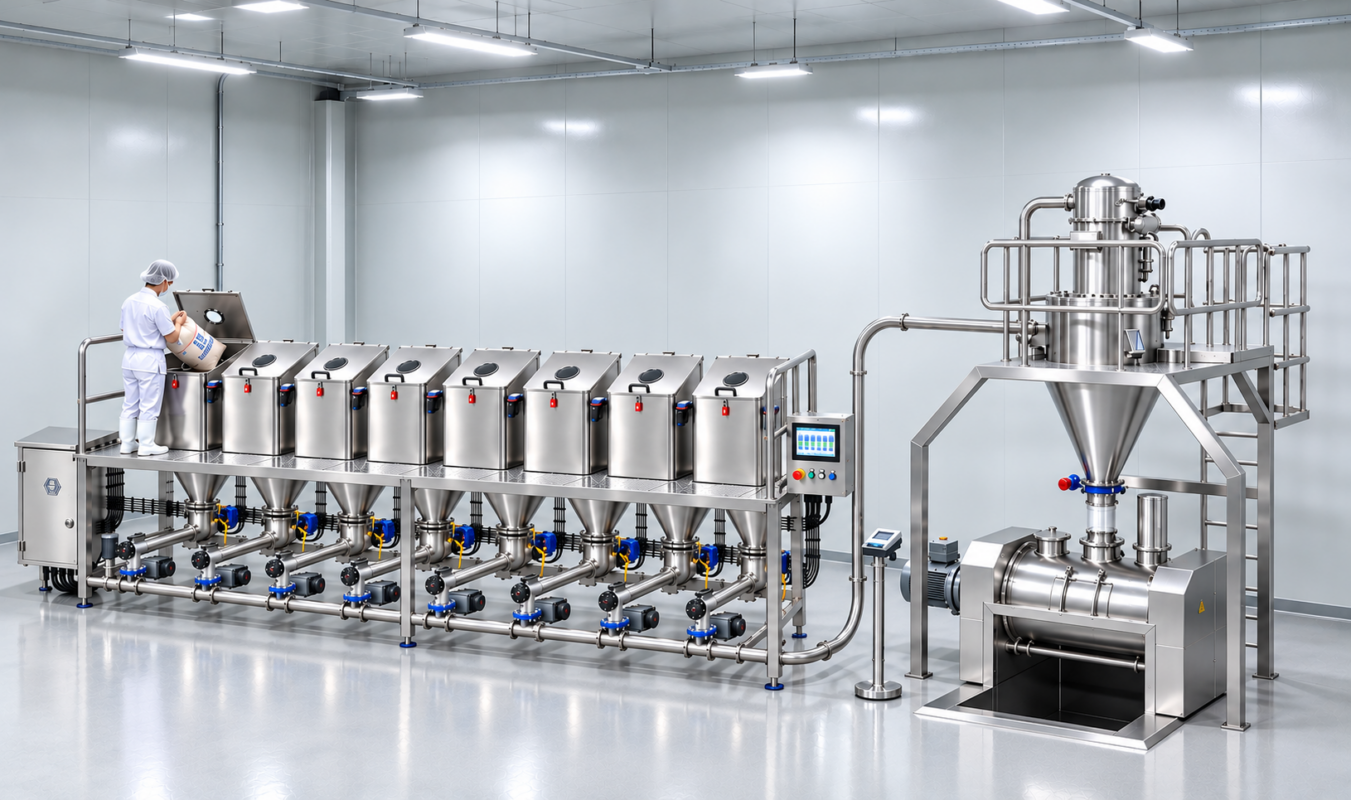

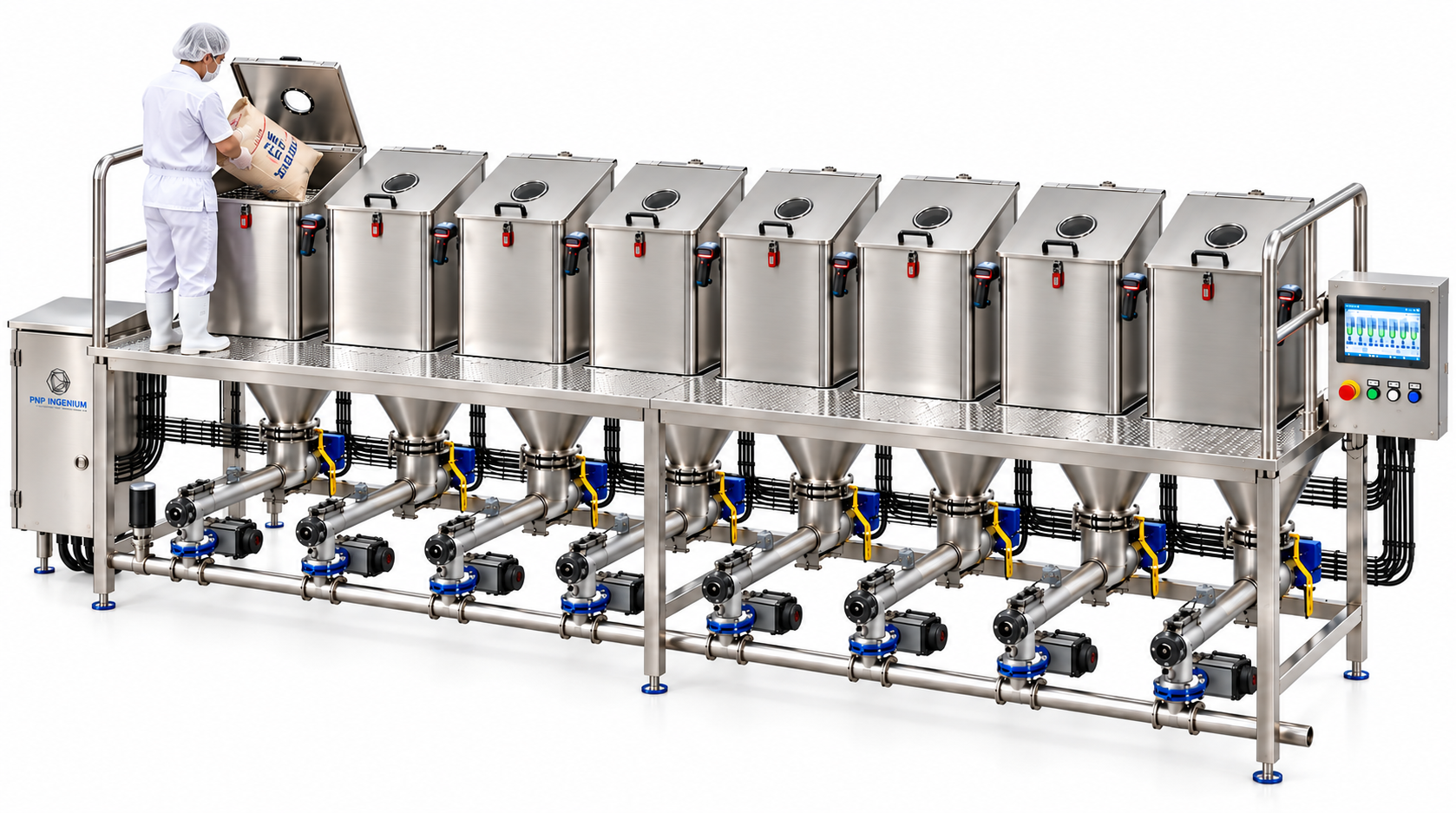

PNP Ingenium designs and manufactures ingredient handling systems for powders and suitable granules, integrating barcode verification, recipe-controlled dosing, weighing and pneumatic conveying to the mixer.
The system helps reduce wrong-ingredient loading, improve batch consistency and reduce manual handling after bag loading. Available with 2, 4, 6 or 8 ingredient stations, it supports Gain-in-Weight (GIW) or Loss-in-Weight (LIW) weighing, with pressure or vacuum conveying selected to suit the materials and production requirements.
Each system is engineered around your recipes, batch quantities and plant layout.
Engineered by Thai Professionals. Made in Thailand. Built for Industry.
Features & Benefits
- Barcode Verification — Checks material codes against the selected recipe and assigned ingredient station before loading.
- Loading Interlock — Triggers an alarm and withholds loading permission when verification fails.
- Recipe & Sequence Control — Defines ingredient target weights and dosing sequences.
- Dedicated Screw Feeders — Individual screw feeders with adjustable coarse and fine feeding.
- Discharge Valves — Butterfly valves at each screw feeder discharge.
- GIW / LIW Weighing — Supports destination Gain-in-Weight or individual source Loss-in-Weight configurations.
- Pressure / Vacuum Conveying — Supports both pressure and vacuum pneumatic conveying systems.

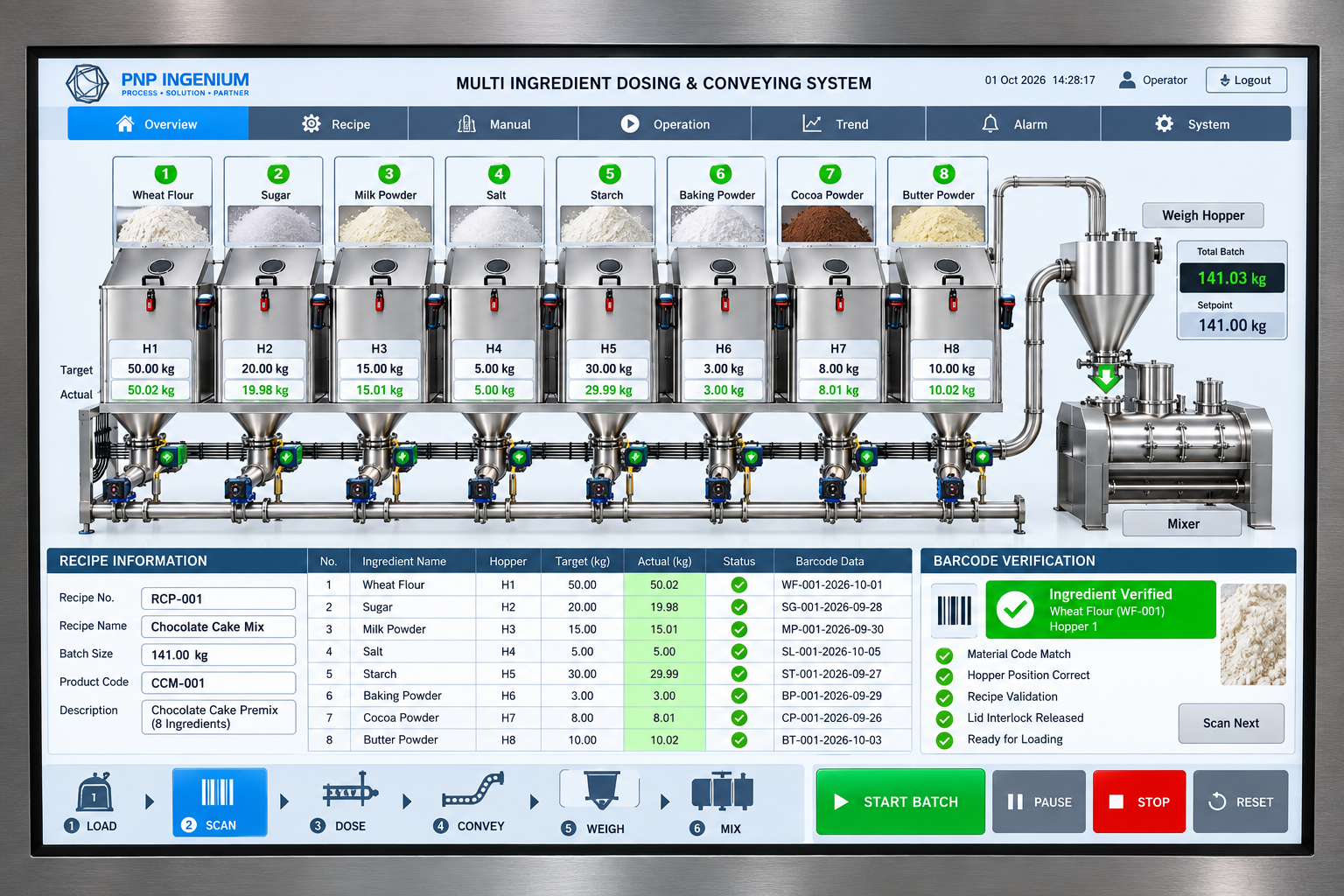

- HMI Operation — Provides recipe selection, ingredient verification status, process monitoring and alarms.
- Modular Configuration — Available with 2, 4, 6 or 8 ingredient stations, with custom configurations available.
- Batch Records & Traceability — Supports recording recipes, actual weights and barcode data within the selected scope.
- SS304 Contact Parts — Stainless Steel 304 material-contact components.
- Custom System Design — Hopper sizes, feeders, conveying routes and layouts engineered to suit production requirements.
- Made in Thailand — Designed and manufactured in Thailand.
Technical Data
| Parameter | Specification |
|---|---|
| System Type | Multi-Ingredient Dosing & Conveying System |
| Material Type | Powders and granules suitable for the selected feeding and conveying configuration |
| Ingredient Stations | 2, 4, 6 or 8 stations; custom configurations available |
| Loading Method | Manual bag loading with barcode verification before loading permission |
| Feeding Equipment | Dedicated screw feeder for each ingredient, with adjustable coarse and fine feeding |
| Discharge Valve | Butterfly valve at each screw feeder discharge |
| Weighing Configuration | GIW: Measures weight gain at the destination weighing hopper. LIW: Measures weight loss from each source hopper and feeder assembly. |
| Conveying Method | Pneumatic conveying: Pressure Conveying System or Vacuum Conveying System |
| Discharge Destination | Weighing or receiving hopper before discharge into the mixer or downstream process |
| Contact Material | Stainless Steel 304,316L |
| Control & Operation | HMI with recipe management, dosing sequence control, ingredient verification and configured interlocks |
| Data Recording | Batch records and barcode traceability within the selected scope |
| Hopper Capacity | Specified according to ingredient consumption and material bulk density |
| Dosing & Conveying Capacity | Specified according to batch quantities, required batch time and conveying conditions |
| Weighing Accuracy | Specified per project according to material properties, weighing range and agreed test conditions |
| Utilities | Electrical power and compressed air as required by the selected configuration |
| Installation Layout | Engineered to suit available space, installation height and mixer inlet location |
| Country of Manufacture | Thailand |
System dimensions, capacity, accuracy and included functions are specified for each project.
